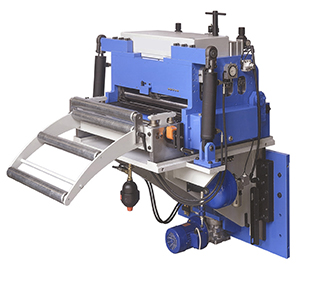

​STRAIGHTENER/FEEDERS SSF-60- 200-1300 UP TO 3 MM THICKNESS

Straightener/Feeder able to work with material from 0,7 to 4 mm thickness
Frame in steel tube electrowelded, roll support by steel plates 25 mm thickness
Rolls configuration by 9+2 rolls diam 60 mm  herdened at 62 HRC and grided as mirror
Inlet guide roll made by 4 vertical rolls autocentering by screw and hand wheel, position visualized by digital device
Nr. 5 bottom rolls at fixed position, interaxe 68 mm all connected bt gear in oibath
Nr. 4 upper rolls adjustable by gearbox via hand wheel (optional motorised and programmable)
Outlet braket with 4 support rolls to support the band at the exit
The lower rolls are connected at Screw Gearbox ratio 1:10 and Brusshkess A.C. Motor and Servo Driver
The upper rolls are adjustable at the inlet and at the outlet position
Pinch-Roll out pressed by 2 pneumatic cylinders

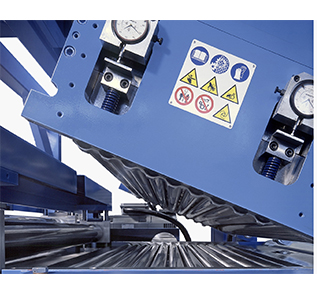

Opening head by 2 hydraulic cylinder for easy band introduction and rolls inspection and cleaning

The SSF60 is equipped by a CN with possibility to program 99 programs with 9 variable feed repetable N. times
Measure wheel with encoder reading direct on the band in order to consider even sleeppinng situation
Manual Hand box for thr manual operation
Electric Interface with the Press in order to share the emercency stop signals

OPTIONAL EXTRA:

Inlet lower table with free roll at the end

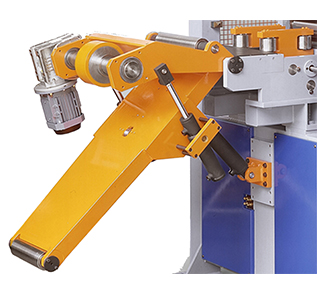

Upper inlet table with motorised deformation roll, or free roll
Motorised heigh Adjustment + 200 mm
Motorised and programmable upper roll setting with dynamic increment
in order to have a continuos pression increment during the coil consumption
Opening head everyt stroke for total pilot release (up to 70 spm)
