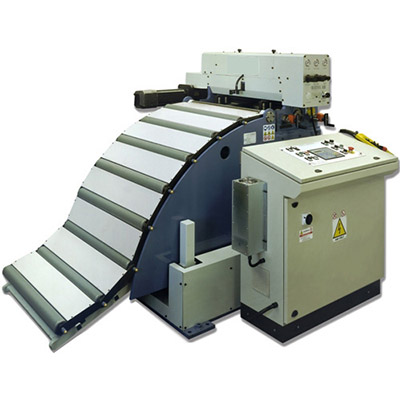

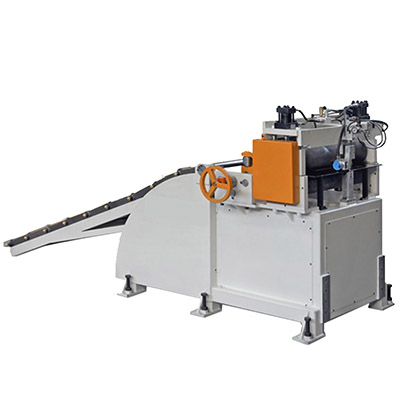

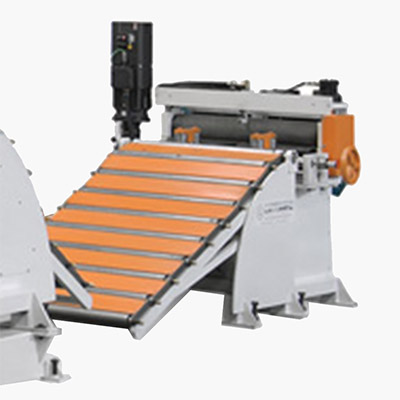

SERVO ROLL FEEDER SRF-160

SERVO ROLL FEEDER SRF-160

SERVO ROLL FEEDER SRF-160

This Roll Servo Feeder can feed material up to 9 mm thickness at Press Running up to 120 SPM

Configuration 2 pulling rolls diameter 160 mm. Hardened HRC 62 and grinded as mirror
Brusshless Servomotor with screw gearbox 1:20 directly connetced at the lower roll by  ring spann
Upper roll synchro by 4 gear wit low gap, the upper roll it is pressed by 2 pneumatic cylinders for band insertion

  • Possibility to have pneumatic pilot release up to 120 rpm with pilot angle 60°
  • Digital Servo Drive with possible overload 2 time the nominal of the motor for 0,2 minute
  • Inlet roll braket at 4 rolls, Nr. 4 side guide rolls  autocentring by screw and hand wheel with 20 mm possible offset

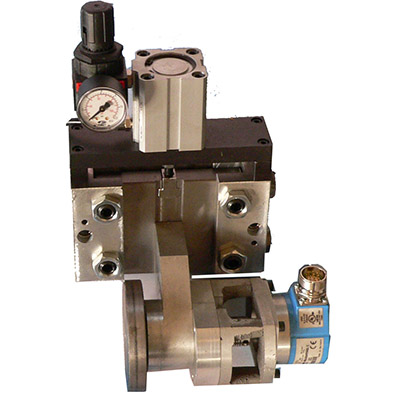

  • Measure wheel with encoder 5000 pulses x 4 times directly pressed on the band with adjustable pressure
  • Standard adjustable support angle by manual crick 160 mm (oprional motorised with 200 mm range)
  • The feeder can be made at standard band wide 420-620-820-1020-1320-162 mm. Max Thickness. mm. 9
  • Max speed 120 metres/minute, Max acceleration 40 metres/sec^2
  • Feed accuracy + - mm. 0.04 (using measure wheel)
  • Programmable Feed Length from  0.1 mm. to 9 metres
  • Electric Cabinet in pulpit wide 800 mm (optional Column 600x2000 with remoted control)
  • NC  integrate in the Digital Servo Drive with 99 programs with 9 possible different length programmable no times
  • Display Touch Screen 6” Standard system Emerson Control Techniques (optional exra price by Siemens)
  • Press command by dedicate relay, possibilito to work as Master or by Slave on mixed
  • Absolute encoder to be mounted on the Press Shaft for Syncro Press/Feeder (electronic cams)
  • Mobile manual commands with 3 meters cable with jog forward/backward Manual/Auto Single feed, Emergency
  • OPTIONALS EXTRA PRICE:
  • 200 mm Pass line adjustment by screw gearbox and electric motor
  • Straightening unit with 5 free rolls diameter 80 mm and fast opening by pneumatic cylinder

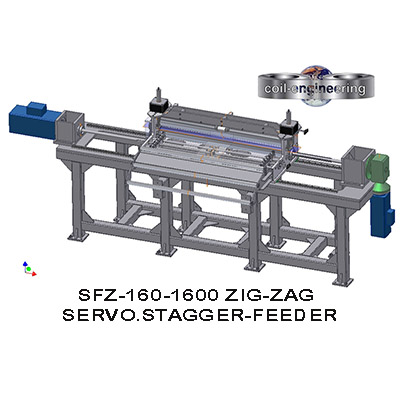

  • SFZ 2 axis ZIG-ZAG to optimize the scrap in the Disc Cutting Lines
