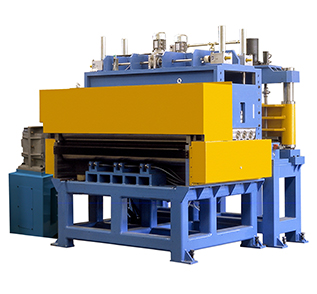

STRAIGHTENER/FEEDERS SSF-240-120-1600 UP TO 10 MM THICKNESS

STRAIGHTENER/FEEDERS SSF-240-120-1600 UP TO 10 MM THICKNESS

STRAIGHTENER/FEEDERS SSF-240-120-1600 UP TO 12 MM THICKNESS

Straightener/Feeder able to work with material from 2 to 12 mm thickness normal steel, 10 if Stainless Steel
Frame in steel tube electrowelded, roll support by steel plates 50 mm thickness

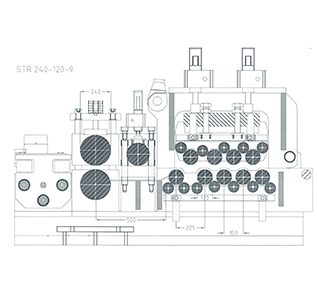

Rolls configuration by 9+2 rolls diam 120 mm hardened at 62 HRC and grided as mirror
Inlet guide roll made by 4 vertical rolls autocentering by screw and hand wheel, position visualized by digital device
Pinch-Roll in by 2 big rolls diam 240 mm presses by 2 hydraulic cylinders
Pre-Straightener Roll diam 160 mm with independent 2 screw-Jackets for the adjustment
Nr. 5 bottom rolls diameter 120 mm at fixed position, interaxe 125 mm all connected bt gear in oibath
Nr. 4 upper rolls diameter 120 mm adjustable by 4 screw-jackets via hand wheel (optional motorised and programmable)
The lower rolls are connected at Screw Gearbox ratio 1:30 and Brushless A.C. Motor and Servo Driver
The upper rolls are adjustable at the inlet and at the outlet position
Vertical Opening head 150 mm for easy band introduction and rolls inspection and cleaning

The SSF-240-120 is equipped by a CN with possibility to program 99 programs with 9 variable feed repetable N. times
Measure wheel with encoder reading direct on the band in order to consider even sleeppinng situation
Manual Hand box for thr manual operation
Electric Interface with the Press in order to share the emercency stop signals

OPTIONAL EXTRA:

Upper inlet table with motorised deformation roll, or free roll
Motorised heigh Adjustment + 200 mm
Motorised and programmable upper roll setting with dynamic increment
in order to have a continuos pression increment during the coil consumption
Opening head everyt stroke for total pilot release (up to 60 spm)

Contact us for more information
