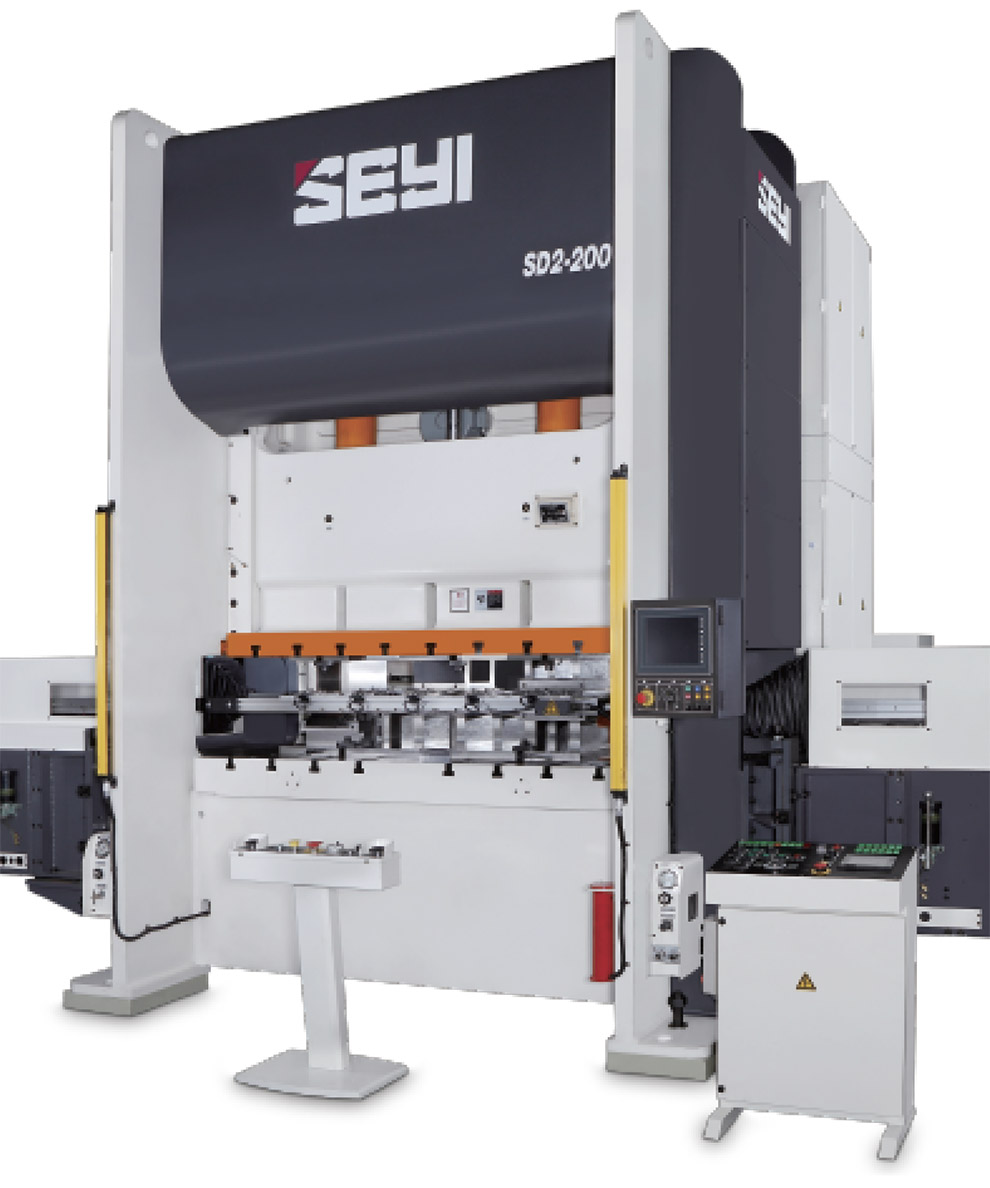

H FRAME SERVO PRESS SEYI SD2-200

H FRAME SERVO PRESS SEYI SD2-200

 H FRAME SERVO PRESS SEYI SD2-200

  • Capacity 200 ton
  • Max Stroke length 250 mm (with pendulum you can use what you want)
  • Slide adjustment 110 mm
  • Bolster area  2200x870 mm
  • Slide area 1900x670
  • Shut heigth SDAU 450 mm

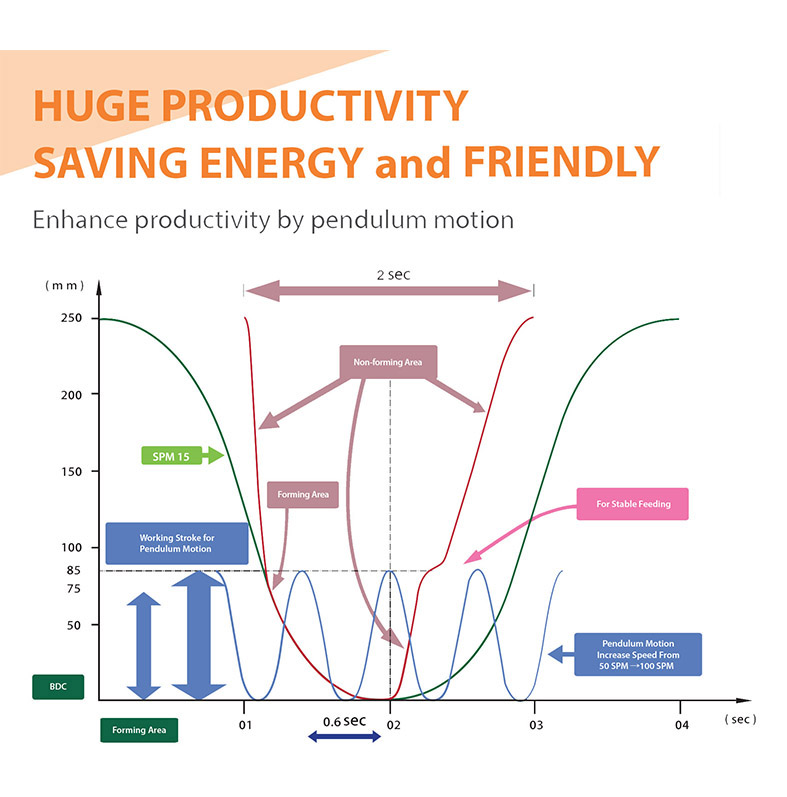

  • Stroke per minute with max stroke length 60 (with pendulum and less stroke you can reach 120 spm)

Features

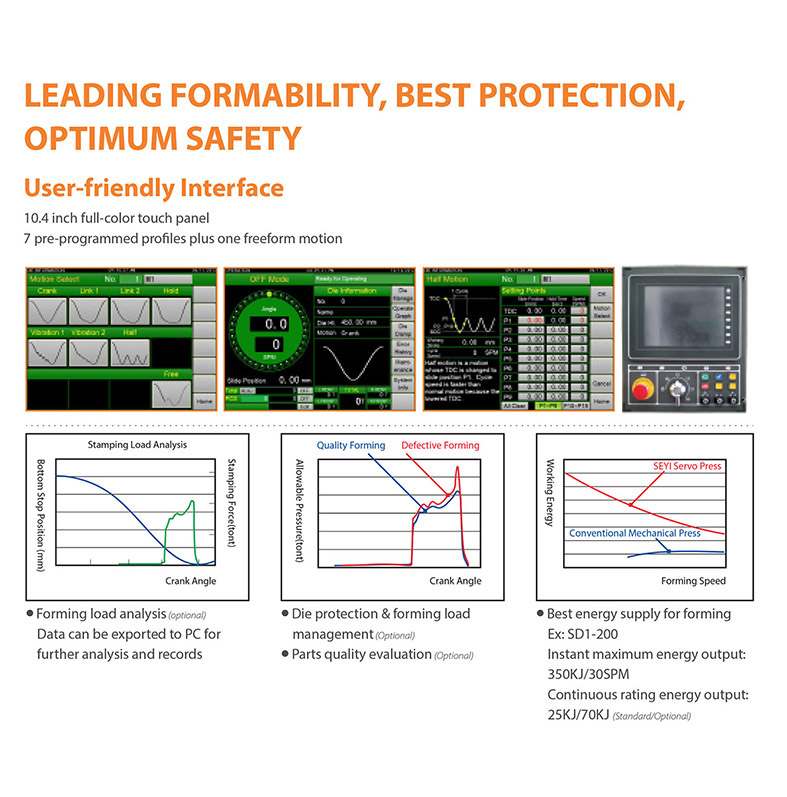

1. User-friendly Interface

2. Safety Design

3. Advanced Press Structure

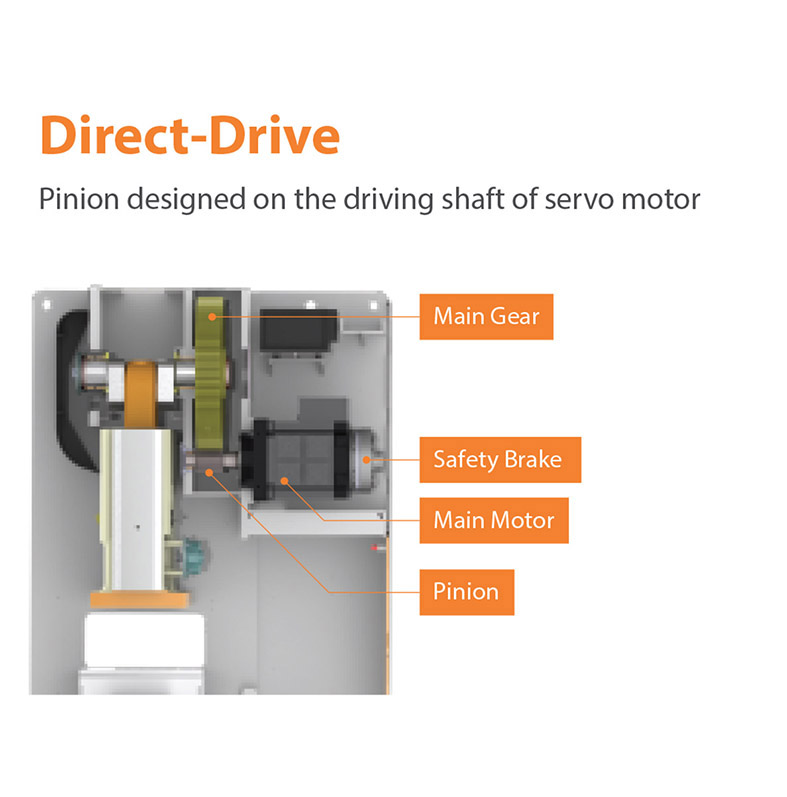

4. Direct-drive

5. Excellent Forming Capability

Standard Attachments

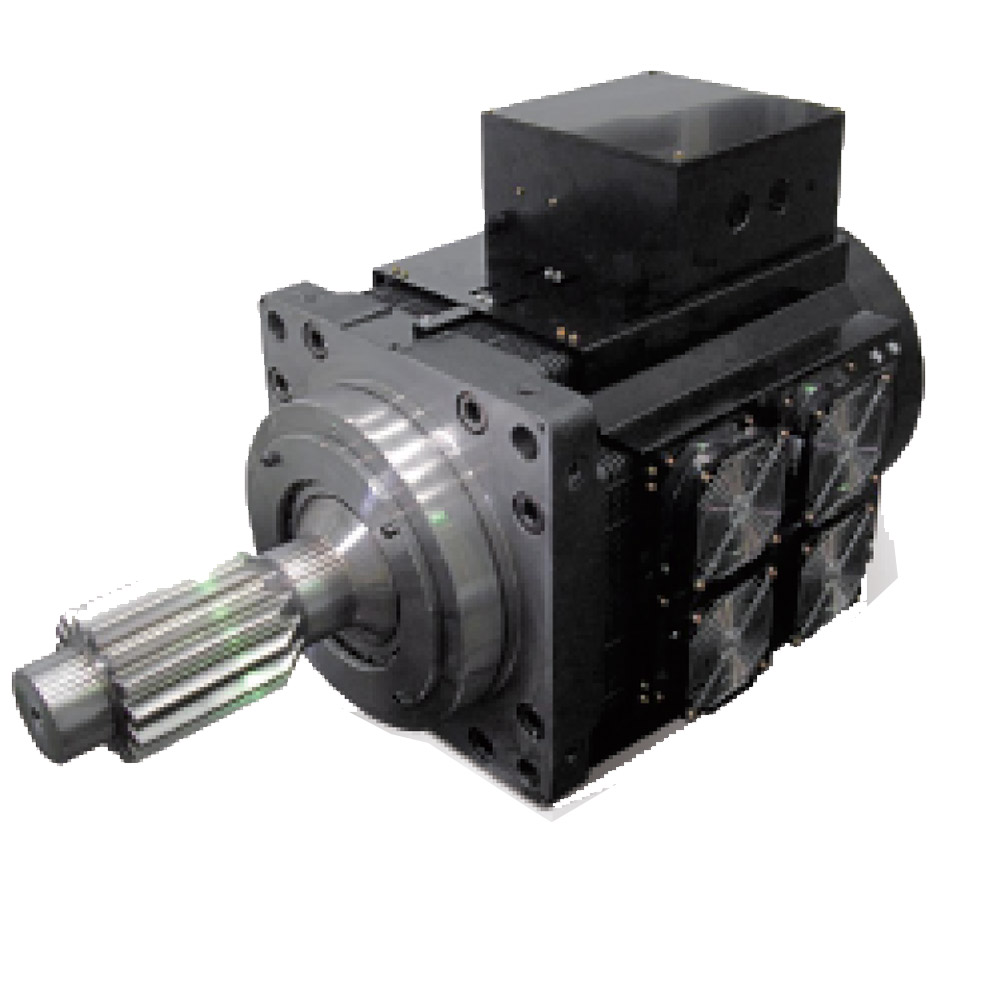

  • Servo System (Servo Motor, Amplifier, Controller)
  • Safety Brake System
  • Electric Overload Protection
  • Tonnage Monitor
  • Free Motion Software
  • Die Information Memory (200 Set)
  • 10.4 Inch Colorful Touch Panel
  • Die Height Adjustment
  • Slide Positon Adjustment (Handy Pulser)
  • Portable Operation Stand
  • Misfeed Socket 4 Set (2A,2B)
  • Pneumatic ejector 1 Set
  • Air Outlet 1 Set
  • Photoelectric Safety Device
  • Oil Lubrication System
  • Total/Preset/Batch/Maintenance Counter
  • Tool Box
  • Anti Vibration Mounts
  • Safety Bar
  • Tool Lamp

Optional Attachments

  • Pneumatic Die Cushion
  • Hydraulic Die Cushion
  • Quick Die Change System
  • Lamp Socket (1A)
  • Knock out Device
  • NC Die Cushion (Will go on sale in 2012)



https://youtu.be/OExXwQDWODs
