ZIG-ZAG SERVO ROLL FEEDER SFZ

ZIG-ZAG SERVO ROLL FEEDER SFZ

ZIG-ZAG SERVO ROLL FEEDER SFZ

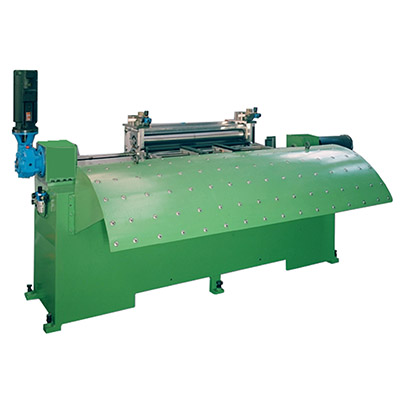

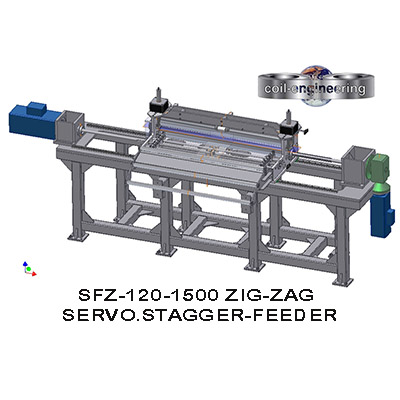

This Roll Servo Feeder has a secon axe  Y to move at the side it is the solution to save up to 15% material in the Disk Cutting Line, can feed material up to 6 mm thickness at Press Running up to 120 SPM

Configuration 2 pulling rolls diameter 120 mm. Hardened HRC 62 and grinded as mirror
Brusshless Servomotor with screw gearbox 1:15 directly connetced at the lower roll by  ring spann
Upper roll synchro by 4 gear wit low gap, the upper roll it is pressed by 2 pneumatic cylinders for band insertion
Y axis running on precision slide moced by Ball screww 40x40 direcly connected at bigge Brusless servomotor

  • Digital Servo Drive with possible overload 2 time the nominal of the motor for 0,2 minute
  • Inlet roll braket at 4 rolls, Nr. 4 side guide rolls  autocentring by screw and hand wheel with 20 mm possible offset
  • The feeder can be made at standard band wide 220-320-420-620-820-1020-1320-1620 mm. Max Thickness. mm. 6
  • Max speed 120 metres/minute, Max acceleration 50 metres/sec^2
  • Feed accuracy + - mm. 0.1
  • Programmable Feed Length from  0.1 mm. to 9 metres

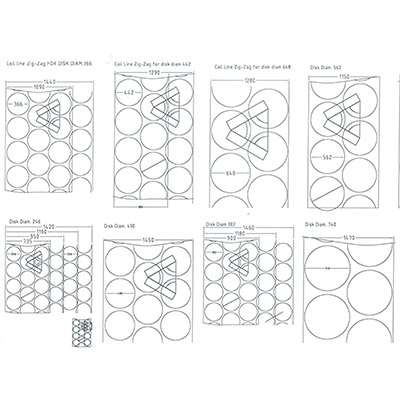

  • Programmable disk diameter , Programmable distance between the borders (scrap)
  • The Operator will programme the disk diameter, the distance and how mani line of disk (1-2-3-4-5-5..)

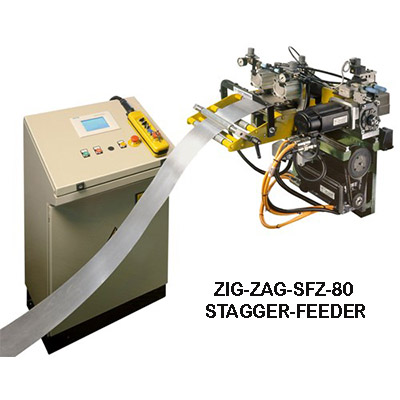

  • Electric Cabinet in pulpit wide 800 mm (optional Column 600x2000 with remoted control)
  • NC  integrate in the Digital Servo Drive with 99 programs with 9 possible different length programmable no times
  • Display Touch Screen 6” Standard system Emerson Control Techniques (optional exra price by Siemens)
  • Press command by dedicate relay, possibilito to work as Master or by Slave on mixed
  • Absolute encoder to be mounted on the Press Shaft for Syncro Press/Feeder (electronic cams)
  • Mobile manual commands with 3 meters cable with jog forward/backward Manual/Auto Single feed, Emergency
