STRAIGHTENERS STR-120-60-1600

STRAIGHTENERS STR-120-60-1600

STRAIGTENER STR-120-60-1600

Leveler IV able to work with material from 0,5 to 4 mm thickness 3 if Stainless
Frame in steel tube electrowelded, roll support by steel plates 30 mm thickness
Rolls configuration by 2+19+2 rolls hardened at 62 HRC and grided as mirror
Inlet guide roll made by 4 vertical rolls autocentering by screw and hand wheel, position visualized by digital device
Pinch-Roll in pressed by 2 pneumatic cylinders diam 125 mm
Nr. 10 bottom rolls at fixed position, interaxe 66 mm supported by 3 line of counter-rolls
Nr. 9 upper rolls adjustable by gearbox via hand wheel (optional motorised and programmable)
Pinch-Roll out pressed by 2 pneumatic cylinders diam 125 mm
All the he rolls are connected at the external gear-house in oilbath by cardanich shaft

Planetary Gearbox ratio 1:20 and A.C. Motor drive by inverter
The upper rolls are adjustable at the inlet and at the outlet position
Loop control by proximity switch + microswitch fo band tide signal
Adjustable speed from 0 to 30 meters minute (optional faster with bigger motor and lower ratio if necessary
Vertical Opening head 150 mm for easy band introduction and rolls inspection and cleaning

OPTIONAL EXTRA:

Inlet lower table with free roll at the end
Upper inlet table with motorised deformation roll, or free roll

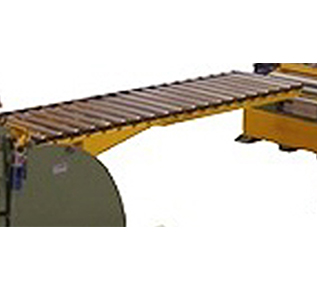

Loader Bridge between the Straightener to the feeder
Ultrasonic loop control to rpvide a continuosly loop adjustment
Motorised and programmable upper roll setting with dynamic increment
in order to have a continuos pression increment during the coil consumption.
