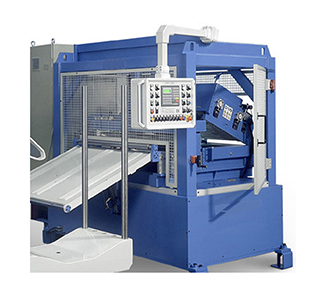

Strip Straightener STR 40- 200-1300 able to work with material from 0,5 to 2,5 mm thickness

Frame in steel tube electrowelded, roll support by steel plates 30 mm thickness
Rolls configuration by 19+2 rolls diam 40 mm  herdened at 62 HRC and grided as mirror
Inlet guide roll made by 4 vertical rolls autocentering by screw and hand wheel, position visualized by digital device
Pinch-Roll in pressed by 2 pneumatic cylinders
Nr. 10 bottom rolls at fixed position, interaxe 45 mm all connected bt gear in oibath
Nr. 9 upper rolls adjustable by gearbox via hand wheel (optional motorised and programmable)
Pinch-Roll out pressed by 2 pneumatic cylinders
Outlet braket with 4 support rolls to support the band at the exit
The lower rolls are connected at Screw Gearbox ratio 1:10 and A.C. Motor drive by inverter
The upper rolls are adjustable at the inlet and at the outlet position
Loop control by proximity switch + microswitch fo band tide signal
Adjustable speed from 0 to 30 meters minute (optional faster with bigger motor and lower ratio if necessary
Opening head by 2 hydraulic cylinder for easy band introduction and rolls inspection and cleaning

OPTIONAL EXTRA:

Inlet lower table with free roll at the end
Upper inlet table with motorised deformation roll, or free roll
Loader Bridge between the Straightener to the feeder
Ultrasonic loop control to provide a continuosly loop adjustment
Motorised and programmable upper roll setting with dynamic increment
in order to have a continuos pression increment during the coil consumption.
